Nav Page

Nav pages show a navigation bar at the top with the page title. They can also show a "Back" button.

Attributes:

• widget: Widget
  • Required
  • The widget to display on the page
• title: "Page One"
  • Required
  • Displayed in the navigation bar
  • Available to analytics tools through UIKit UIViewController.title
• poll_seconds: n
  • Page silently refreshes every n seconds, when the app is in the foreground.
  • Page silently refreshes when the user switches to the app.
• start: widget
  • Replaces the default back button with a custom back_button.
  • Set this to the empty widget to remove the back button.
  • On iOS, setting this widget disables the swipe-back gesture. This is because of bugs in Apple's UIKit.
• ephemeral: true
  • For static pages only.
  • When the user terminates the app and starts it again, do not restore this page or any subsequent pages in the stack. This is useful for error pages.

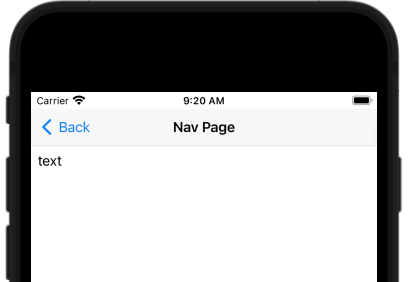

Example

# Ruby
nav_page(title: "Nav Page") {
  scroll(form(widgets: [
    text("text")
  ]))
}

#![allow(unused)]
fn main() {
// Rust
nav_page("Nav Page", scroll(form((
    text("text"),
))))
}

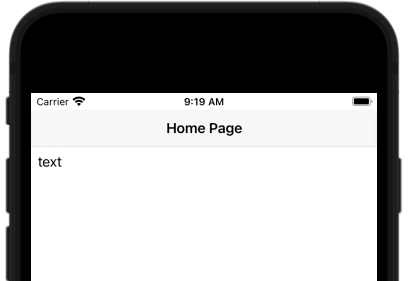

Home Page

When a nav page is the only page on the stack, it doesn't show a Back button.

# Ruby
nav_page(title: "Home Page", poll_seconds: 30) {
  scroll {
    column(widgets: [
      text("text")
    ])
  }
}

#![allow(unused)]
fn main() {
// Rust
nav_page("Home Page", scroll(form((
    text("text"),
))))
.with_poll(30)
}

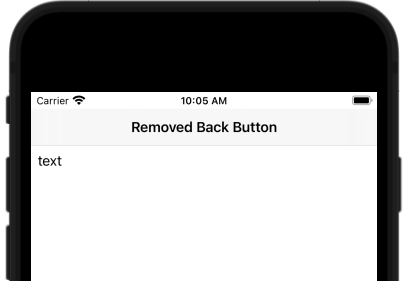

Removed Back Button

To remove the back button, set the nav page's start attribute to the empty widget.

The user may become frustrated. See section 3 "User control and freedom" of Nielsen Norman's 10 Usability Heuristics for User Interface Design.

# Ruby
nav_page(title: "Removed Back Button", start: empty) {
  scroll {
    column(widgets: [
      text("text"),
    ])
  }
}

#![allow(unused)]
fn main() {
// Rust
nav_page("Removed Back Button", scroll(column((
    text("text"),
))))
.with_empty_start()
}
