checkbox Widget

A checkbox widget to displays the value of a boolean (true or false) variable. The user can tap the widget to toggle the value of the variable.

Attributes:

• var_name: "var1
  • Variable name
  • Required
• actions: [action]
  • A list of actions to perform when the user taps the button
  • When the list is empty, the button is disabled.
• initial_bool: true
  • The initial value of the variable, if the variable is unset.
• poll_delay_ms: 0
  • Poll (update) the page immediately when the user changes the checkbox state.
  • Use this for search boxes.
• poll_delay_ms: N
  • Poll (update) the page after the user changes the checkbox state and N milliseconds passes.
  • Use this to validate selections and show warnings.
• text: "Label1
  • A label to display next to the checkbox.

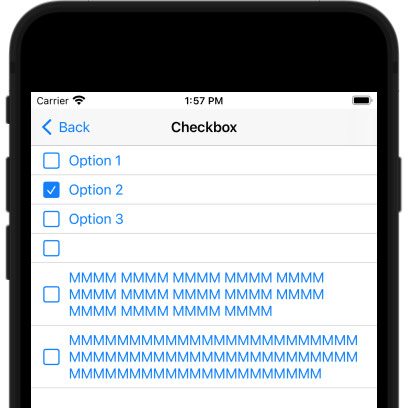

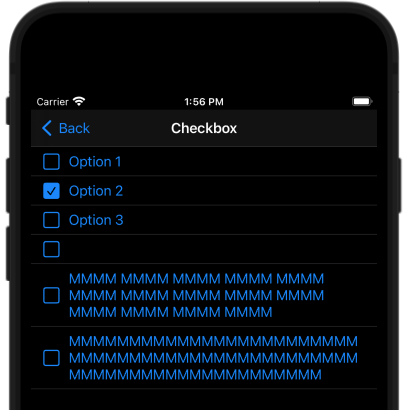

Example

# Ruby
nav_page(title: "Checkbox") {
  scroll {
    form(widgets: [
      checkbox(text: "Option 1", var_name: "option_1"),
      checkbox(text: "Option 2", var_name: "option_2", initial_bool: true),
      checkbox(text: "Option 3", var_name: "option_3", rpc: "/ok"),
      checkbox(text: "", var_name: "no_label"),
      checkbox(
        text: "MMMM MMMM MMMM MMMM MMMM MMMM MMMM MMMM MMMM MMMM MMMM MMMM MMMM MMMM",
        var_name: "many_words",
      ),
      checkbox(
        text: "MMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMM",
        var_name: "long_word",
      ),
      checkbox(text: "Polls page", var_name: "poll", actions: [Applin::poll]),
      checkbox(
        text: "Polls page after 1 second delay",
        var_name: "poll_delay",
        poll_delay_ms: 1000,
      ),
    ])
  }
}

#![allow(unused)]
fn main() {
// Rust
nav_page(
    "Checkbox",
    scroll(form((
        checkbox("option_1").with_text("Option 1"),
        checkbox("option_2").with_text("Option 2").with_initial_bool(true),
        checkbox("option_3").with_text("Option 3").with_rpc("/ok"),
        checkbox("no_label"),
        checkbox("many_words")
            .with_text("MMMM MMMM MMMM MMMM MMMM MMMM MMMM MMMM MMMM MMMM MMMM MMMM MMMM MMMM"),
        checkbox("long_word")
            .with_text("MMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMMM"),
        checkbox("polls")
            .with_text("Polls page")
            .with_poll_delay(Duration::ZERO),
        checkbox("poll_delay")
            .with_text("Polls page after 1 second delay")
            .with_poll_delay(Duration::from_secs(1)),
    ))),
)
}
